Solar Water Pump Solutions
Efficient, eco-friendly water pumping systems powered by solar energy, designed to provide reliable irrigation and water supply solutions in remote and agricultural areas.
- Designed and offered for agricultural water pumps
- Supports domestic water pumps of various capacities.
- Scale ranges from 3 HP pump-set to 15 HP pump-sets
- Off grid solution can be integrated as an off-shoot of the solution

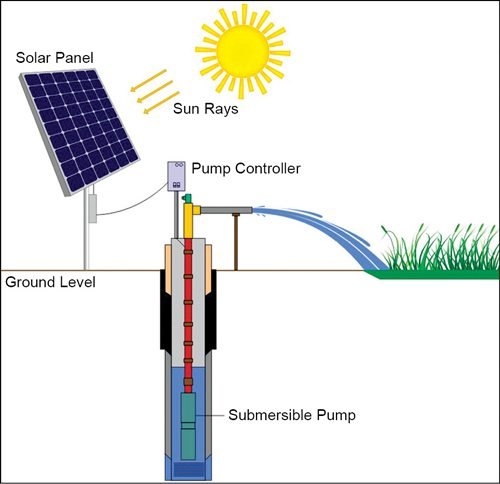

The Solar Water Pump solution comprises of the following :
A) Solar PV Array :
This includes a set of Solar PV panels connected in a combination of series and parallel to achieve maximum efficiency and also to match the inverter specifications. The power rating of the solar PV array will be suitable to the design of the pump.
Specifically for Solar Water Pump solution, it has been determined that Mono-PERC panels are not suitable due to voltage and current mismatch with respect to the VFD specs. For this reason, polycrystalline modules are found to be more suitable for this application.
| Technology | Characteristics |
|
Poly-Crystalline Si based Solar Panels |
|
|
Mono-Crystalline Si based Solar Panels (Mono-PERC) |
|

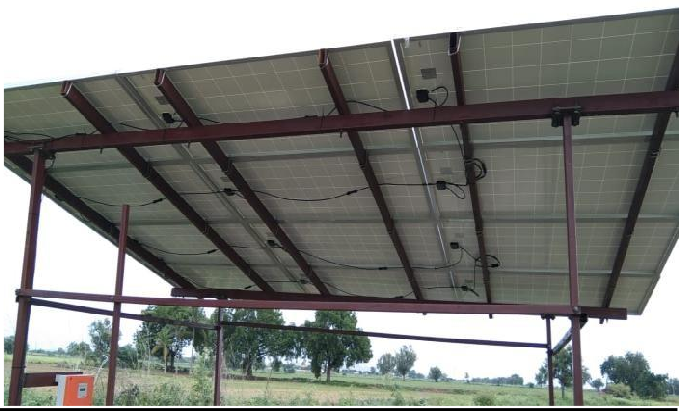

b) Mounting Structure
As discussed, the panels will be mounted on the mounting structure which might be set up on the ground or rooftop depending upon the customer requirements. Additional mounting structure accessories required if any such as pipes, nuts, bolts etc. will be provided by Solcore.

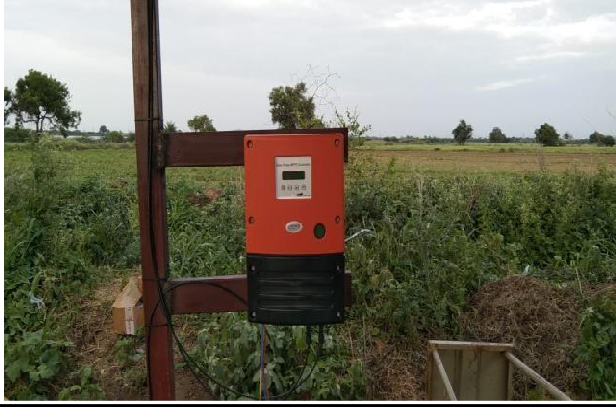

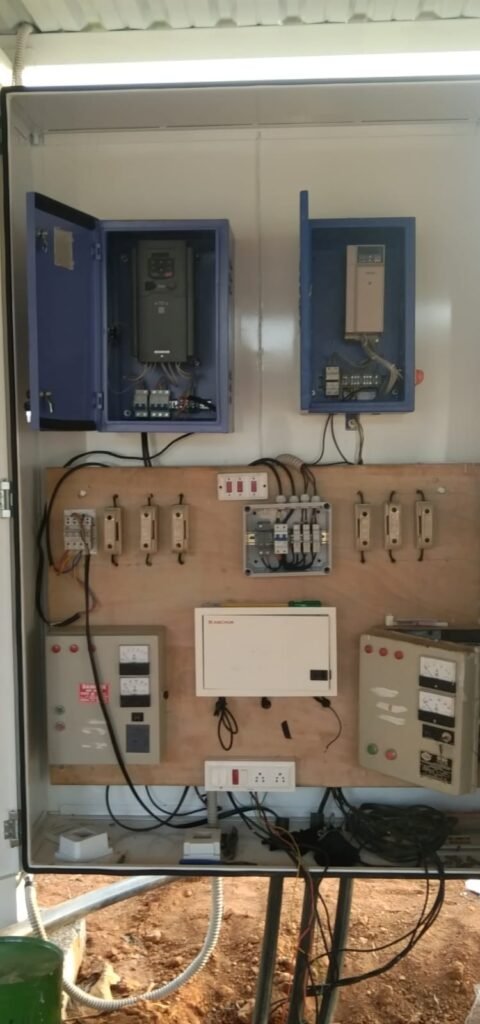

c) Solar Pump Controller (Inverter)
This will be a transformer-less inverter with 415 VAC, 3-Phase output voltage and V/F control to manage pump starting condition such as soft-start. This will be micro controller based and with software to handle digital control of inverter parameters, fault finding diagnostics and I/O signaling.
d) Inbuilt MPPT Controller
The MPPT (Maximum Power Point Tracking) controller regulates the output frequency according to the irradiance in real time to achieve maximum power. Adapting this MPPT method provides for stable operation and faster response.
Example : 15 HP Solar Water Pump - Technical details
The table below summarizes the technical requirements to set up the 15 HP solar water pump solution.
| Sl. No. | Capacity (in HP) | Dynamic Head (Mtr) | Approx Discharge per day (Ltrs) | Solar Panel Capacity (Wp) | Solar Panel Config | No of Strings | Controller Drive Capacity | I/P Voltage Range (Voc) | Max I/P Current (Amps, DC) | Drive O/P Voltage (AC) |
| 1 | 15 | 308 | 38500 | 19840 | 320 Wp × 64 | 4 | 20 HP | 250 – 780 V | 32 | 380 V |
| 2 | 10 | 308 | 22000 | 15360 | 320 Wp × 48 | 3 | 15 | 250 – 780 V | 24 | 380 V |
Key Solar Water Pump Solutions carried out by Solcore :
| Sl. No. | Customer | Solution Description | PV Panels | VFD Controller |
| 1 | Solar Water Pump Solution for 7.5 HP at Soolagiri, TN | 10 KWp Solar PV Plant (7.5 HP borewell motor/pump) | Emmvee (310 Wp Polycrystalline) | MEC 10 HP |
| 2 | Solar Pump Solution for 3 HP Motor at Raichur | 4 KWp Solar PV Plant (3 HP borewell motor/pump) | Renewsys (330 Wp Polycrystalline) | MEC 5 HP |
| 3 | Solar Pump Solution for 3 HP at Nelamangala | 4 KWp Solar PV Plant (3 HP submersible motor/pump) | Renewsys (330 Wp Polycrystalline) | Amrut Energy 5 HP |
| 4 | Integrated Solution (10 HP + 7.5 HP) at Nelamangala | 15 KWp Solar PV Plant (1200 ft borewell depth) | Gautam Solar 550 Wp Mono-PERC Panels | INV1 Solar 10HP/15HP VFD |
| 5 | Solar Pump Solution for 5 HP at Soolagiri, TN | 10 KWp Solar PV Plant (600 ft borewell depth) | Gautam Solar 550 Wp Mono-PERC Panels | INVT 10 HP VFD |

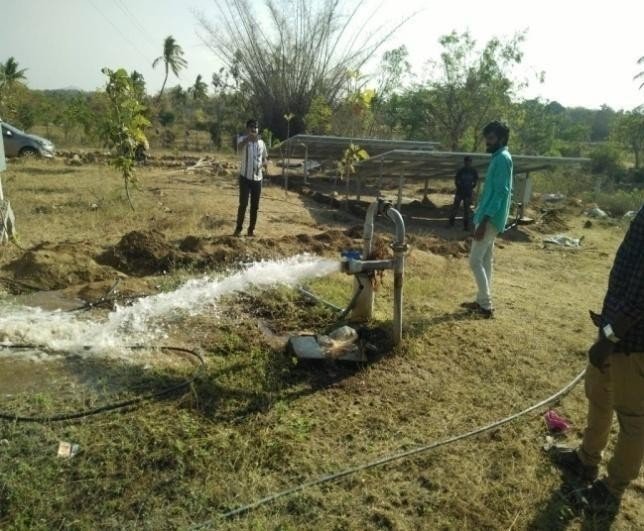

7.5 HP Solar Water Pump Solutions (Soolagiri)

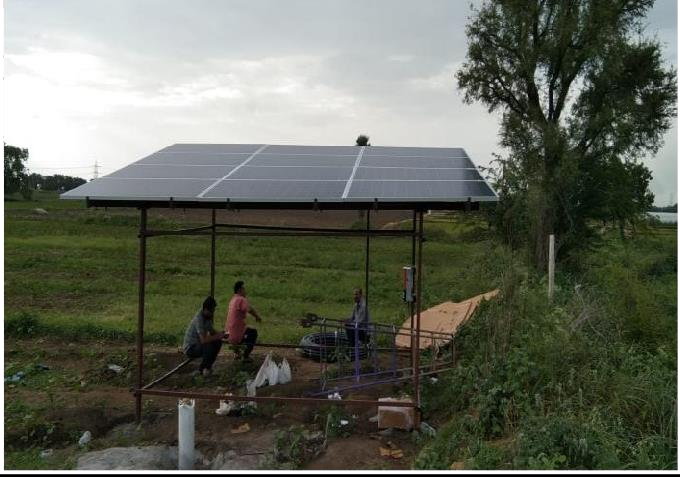

3 HP (350 ft depth) Solar Water Pump Solution in Raichur

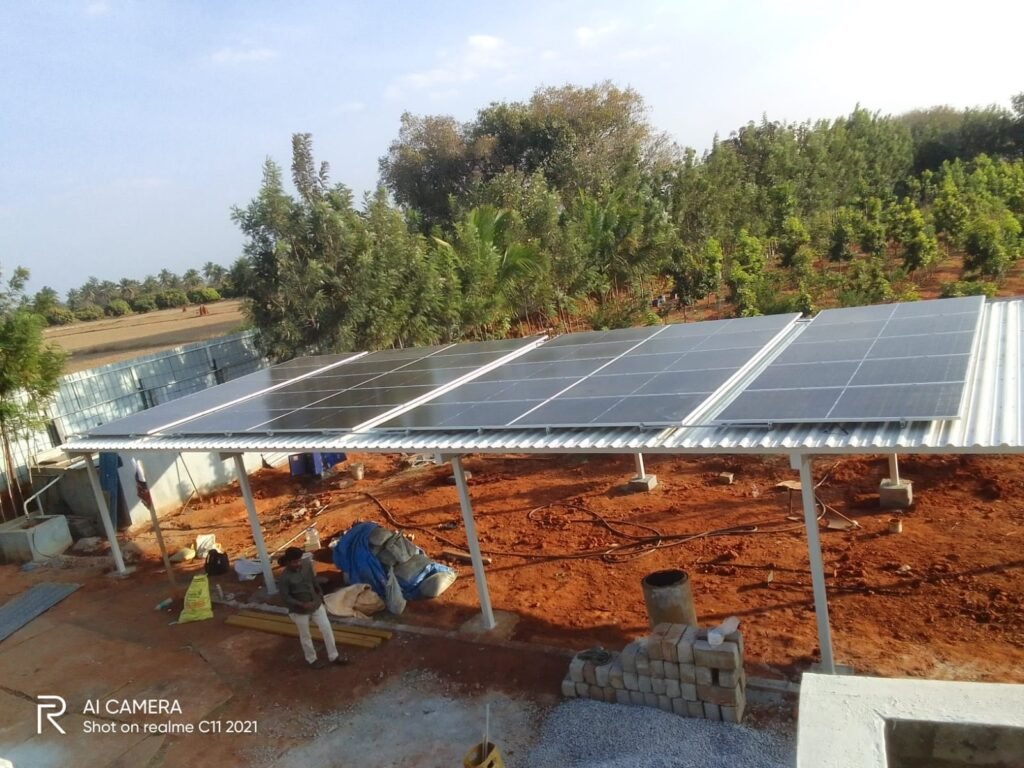

Nelamangala – 10 HP Solar Water Pump Solution
