Solcore : Solar Solutions
Solcore is a leading provider of state-of-the-art solar rooftop solutions, offering advanced technology and optimized pricing for residential, industrial, and commercial sectors. Our expertise extends to home solar energy systems, with specialized home solar energy panels designed to deliver reliable, cost-effective power.
With a strong technical foundation, deep industry knowledge, and extensive network connections, Solcore stands at the forefront of solar innovation, providing energy solutions tailored to diverse needs.
Solar Street Lights
Durable and sustainable solar-powered lighting systems for streets, pathways, and public areas, enhancing safety and visibility with minimal environmental impact.
- Wide range of solar street lights of different capacities
- All-in-One Integrated Solution or separate components
- 10 W to 40 W luminesce
- Dusk to Dawn automatic operation

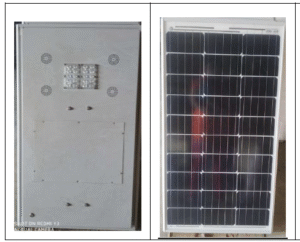

Integrated Solar LED Street Light
- Integrated Solar panel, LED light, PIR motion sensor with timer,
- High quality Li-Ion or LiFePO4battery and highly efficiency solar charge controller.
- PIR Sensor adjusts LED brightness on sensing motion (10m range) − LEDs dim to 1/3 intensity after 1 minute of detecting any movement in the specified range.
- Automatic dusk to dawn operation,
- Battery overcharge/deep discharge protection, GREEN & RED LEDs for indicating battery charging /discharging and Fuse for additional protection
- LED Light- 20 W (High Power LEDs)
- Solar panel-Poly crystalline -- suitable capacity
- LiFePO4 Battery
- Motion Sensor- PIR motion sensor (10 m range)
- Timer- Manage time between full brightness and start of PIR motion sensor
- Solar charge controller
Benefits :
- Integrated solar street light comes with Built in infrared PIR motion sensor which automatically detects human/traffic presence and adjusts LED brightness accordingly. If motion sensor detects no motion for more than 1 minute, the controller reduces the brightness of LED Lamp by one third, on detecting any movement in the range of 10 m, the light will automatically glow at full intensity. This provided required illumination only when needed and helps in increasing battery backup time
- Microcontroller based design enables intelligent and efficient working.
- Totally off-grid design with very easy installation.
- Perfect for areas without Mains Supply.
- Elegant Look.
- In all other integrated solar Street light, PIR motion sensor starts from the evening itself resulting in very low illumination even in first few hours in the evening when good illumination is required whereas, we provide option to start with full intensity for certain hours in the evening so that you can have full illumination in the evening time. After the desired full intensity period only the PIR motion sensor come into the picture and adjust brightness according to movement in the late night hours till morning
B) Solar Rooftop projects for Industrial customers:
| Sl. No. | Customer | SRTPV Capacity | Solar PV Panels | Inverter |
| 1 | Industrial Customer, Srigandha Nagar, Peenya, Bangalore | 100 KWp with HT Connection | Panasonic-PERC (545 Wp) | SunGrow 50 KW × 2 String inverter |
| 1 | Industrial Customer, Jigani, Bangalore | 212 KWp with HT Connection | Satvik Mono-PERC (550 Wp) | Solis 100 KW × 2 String inverter |
| 2 | Industrial Customer, Srigandha Nagar, Peenya, Bangalore | 80 KWp with HT Connection | Longi Mono-PERC (540 - 545 Wp) | Delta 70 KW string inverter with DelRemo |
| 3 | Industrial Customer, Srigandha Nagar, Peenya, Bangalore | 43 KWp with HT Connection | Longi Mono-PERC (540 Wp) | Growatt 20 KW × 2 string inverter |
| 4 | Major Software Company in Bangalore | 186 KWp with HT Connection | REC 400 Wp | Enphase Micro Inverters |
| 5 | Civil Court in Tumkur | 86 KWp with HT Connection | Renew-sys 335 Wp | Sungrow KW (20 KW + 50 KW) |
| 5 | Govt Building in Tumkur | 40 KWp with HT Connection | Vikram 335 Wp | Sungrow 33KW |
| 6 | Govt. Building Tumkur | 20 KWp with HT Connection | Vikram 335 Wp | Sungrow 20 KW |

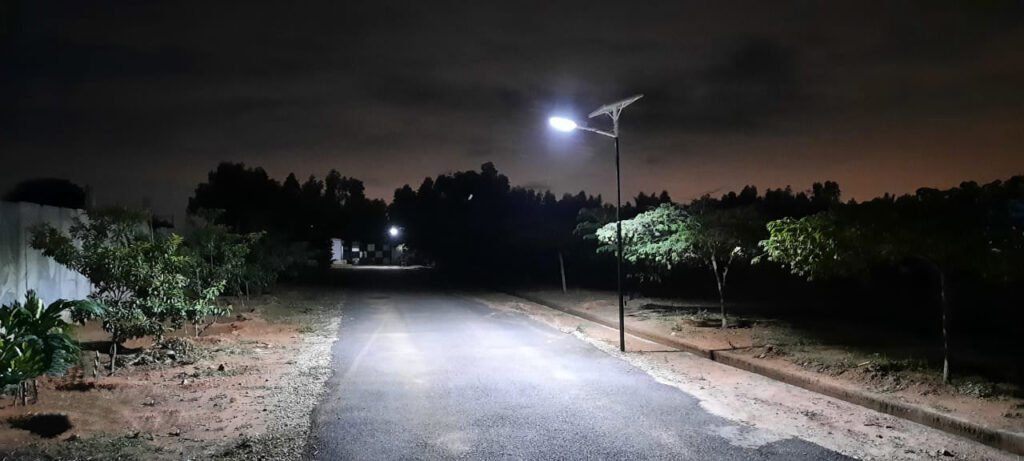

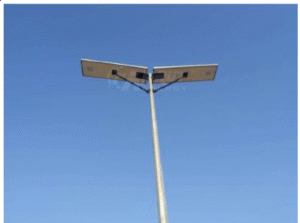

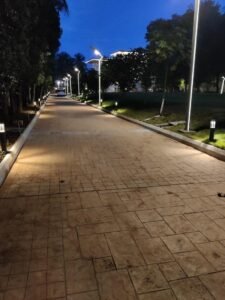

Example Solar Street Light Implementation :
